Regular Polygon Ring Calculator

Overview of the Regular Polygon Ring Calculator

The Regular Polygon Ring Calculator is a specialized online tool designed to help users easily compute the geometric properties of a shape formed by two concentric regular polygons — one smaller (inner) and one larger (outer) — that share the same number of vertices. This shape, often referred to as a polygon ring, resembles a regular polygonal "donut" or frame, where the center is hollowed out in the shape of a smaller polygon.

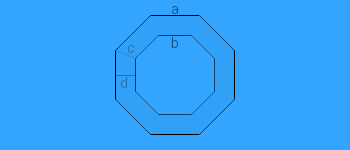

This calculator allows users to input three key values: the outer edge length (a), the inner edge length (b), and the number of vertices (n). Once these values are entered, the calculator automatically determines:

Thickness at the vertices (c): The distance between the inner and outer polygons at the corners.
Thickness at the edges (d): The distance between the sides of the inner and outer polygons.
Perimeter (p): The total length around both polygons combined.
Area (A): The space between the two polygons, representing the ring’s surface area.

The results can be rounded to the desired number of decimal places for precision and clarity. In addition, the calculator is equipped with intelligent input handling — it automatically switches values if the user accidentally enters a larger number for the inner edge than for the outer edge, and it ensures the number of vertices is at least 3, as required for forming a polygon.

Importance and Applications of Calculating Properties of Polygon Rings

Calculating the dimensions and properties of polygon rings is more than just a mathematical exercise — it has valuable applications in various fields where precision and geometric understanding are crucial. From construction to digital modeling, these calculations serve both practical and creative purposes.

Here are some key areas where this calculator proves useful:

Architecture and Civil Engineering: Polygon rings often appear in floor patterns, ceilings, windows, and decorative structures. Accurate measurement ensures symmetry, material efficiency, and visual harmony.
Mechanical and Structural Design: Components like gaskets, flanges, mechanical seals, and washers often follow polygon ring-like shapes. Calculating the area and thickness helps in material selection, weight estimation, and structural integrity analysis.
Manufacturing and CNC Machining: When creating complex parts or molds, knowing the precise perimeter and area of a polygon ring helps streamline production and reduce waste.
Mathematics Education and Research: Teachers and students can use this calculator as a hands-on learning tool for understanding polygon properties, trigonometry, and area/perimeter formulas in an interactive way.
3D Modeling, Animation, and Game Design: In the digital design world, polygon rings are used to build symmetrical objects, frames, or effects. Knowing exact dimensions enhances realism and consistency in digital assets.
Art and Graphic Design: Artists and designers working with geometric art or pattern design can use polygon rings to construct appealing visuals with mathematical accuracy.

User Interface

Description of the Calculator Interface

The Regular Polygon Ring Calculator features a clean and intuitive interface that guides users through the input process step-by-step. The form is designed for ease of use, with clearly labeled fields and instant feedback once the calculation is performed. Users can input values, select their desired decimal precision, and view the results instantly in the same interface without the need to navigate away from the page.

Two main buttons are available: “Calculate” to perform the computation and “Delete” to clear all fields and start fresh. There is also an option to choose how many decimal places to round the output values, ensuring the results are tailored to the user's preference or required level of precision.

Explanation of Input Fields

Outer edge length (a):
This field requires the length of one side of the outer regular polygon. It should be a positive number. This value helps define the outer boundary of the polygon ring.

Inner edge length (b):
This is the length of one side of the inner regular polygon. Like the outer edge, it must also be a positive number. The inner polygon represents the hole or cut-out inside the ring.

Number of vertices (n):
Enter the number of vertices (or sides) of the polygons here. Both the outer and inner polygons must have the same number of sides. The minimum accepted value is 3, as a polygon must have at least three sides to be valid.

Thickness at the vertices (c):
This read-only field displays the calculated thickness of the ring at the polygon's corners. It’s automatically computed once you click "Calculate" and cannot be edited manually.

Thickness at the edges (d):
Also a read-only field, this shows the distance between the outer and inner polygons along the flat edges. It’s calculated using trigonometric functions and reflects the ring’s thickness away from the vertices.

Perimeter (p):
This read-only field gives the total perimeter by adding the perimeters of the outer and inner polygons. It represents the full boundary length of the polygon ring.

Area (A):
This read-only field displays the total area between the outer and inner polygons. It is the usable surface of the polygon ring and is calculated using a trigonometric area formula.

Using the Calculator

How to Enter Data

To begin using the Regular Polygon Ring Calculator, simply enter the required values in the appropriate fields:

Outer edge length (a): Enter a positive number representing the length of a side of the outer polygon.
Inner edge length (b): Enter a positive number for the side length of the inner polygon.
Number of vertices (n): Input an integer value of 3 or more, representing the number of sides (and vertices) of the polygon.

Once the values are entered, click the "Calculate" button. The calculator will automatically compute the thickness at the vertices and edges, the total perimeter, and the area of the polygon ring.

Validating Edge Lengths and Number of Vertices

The calculator includes built-in validation to help users avoid mistakes:

If any field is left empty or contains an invalid number, the calculator will display an alert asking the user to complete all required inputs.
If the number of vertices is less than 3, an alert will appear because a valid polygon must have at least three sides.

This ensures that all calculations are based on meaningful and correct geometric values.

Correcting Input Values Automatically

If the user mistakenly enters a smaller value for the outer edge length (a) than the inner edge length (b), the calculator will automatically swap them. This guarantees that the outer polygon remains larger than the inner one, preserving the logical structure of a polygon ring.

The corrected values will be reflected immediately in the input fields, so users can continue with the calculation without needing to manually fix the order.

Selecting the Number of Decimal Places for Output

To control the precision of the results, users can select how many decimal places they want to display. A dropdown menu labeled "Round to:" allows users to choose from 0 to 15 decimal places.

This feature is especially helpful when different levels of precision are needed — for example, in academic calculations, technical designs, or simple estimations. Once selected, all output values (thicknesses, perimeter, and area) will be rounded to the chosen number of decimal places.

Calculation Details

Description of the Calculation Process

The Regular Polygon Ring Calculator performs all calculations instantly based on the geometric relationships of regular polygons and trigonometric formulas. Once the user enters the outer edge length (a), inner edge length (b), and number of vertices (n), the calculator processes the input to compute four main outputs:

Thickness at the vertices (c)
Thickness at the edges (d)
Total perimeter (p)
Area of the polygon ring (A)

The results are rounded according to the user's selected number of decimal places for clarity and precision.

How the Calculator Computes Thickness at the Vertices and Edges

The thickness of the polygon ring varies depending on where it is measured. To provide an accurate description of the ring’s shape, the calculator computes two types of thickness:

Thickness at the vertices (c):
This measures the distance between the outer and inner polygons at each corner (vertex). It is calculated using the formula:

c = (a - b) / (2 × sin(π / n))

This formula uses the sine function to account for the angle between sides in a regular polygon.

Thickness at the edges (d):
This represents the thickness of the ring along the middle of each side (not at the corners). It is computed using:

d = (a - b) / (2 × tan(π / n))

The tangent function is used here because it reflects the geometric spacing between parallel edges in regular polygons.

Calculating the Perimeter and Area of the Polygon Ring

Perimeter (p):
The total perimeter of the polygon ring is the combined length of the outer and inner polygons. Since both polygons have the same number of sides (n), the formula is:

p = (a + b) × n

This gives the full boundary length of the ring.

Area (A):
The area of the ring is the difference between the area of the outer polygon and the area of the inner polygon. Using trigonometry, the formula is:

A = (n / 4) × (a² - b²) / tan(π / n)

This formula calculates the area of both regular polygons and subtracts the inner area from the outer to find the usable surface in between.

All results are displayed automatically once you click the "Calculate" button. The process is fast, accurate, and ideal for anyone needing quick geometry results without manual formulas.

Common Calculations

Examples of Common Calculations Users Might Perform

The Regular Polygon Ring Calculator is useful for a wide range of practical and academic scenarios. Here are a few common examples:

Designing a geometric frame: A user wants to create a regular polygon-shaped border for a window or mirror with a specific thickness and number of sides.
Calculating material usage: An engineer needs to estimate the area of material required to manufacture a washer-like ring structure with polygonal edges.
Creating decorative patterns: An artist is designing a tiled pattern made of concentric polygons and needs to calculate the area and perimeter for each layer.
Building a polygon platform: A construction professional wants to compute dimensions for a polygon-shaped base with a central cut-out for weight reduction.

Explanation of Results and Their Practical Interpretations

Thickness at the vertices (c): Tells how deep the ring extends at each polygon corner, which can affect stability or design symmetry.
Thickness at the edges (d): Useful for checking how wide the flat parts of the ring are—important for load-bearing or visual balance.
Perimeter (p): Useful for determining boundary length—for example, how much material is needed to wrap around the ring or to install a border.
Area (A): Indicates the surface area of the polygon ring, which can help estimate material use, weight, or coverage space.

Error Handling

Common Input Errors and How to Avoid Them

Entering negative or zero values for edge lengths.
Providing fewer than 3 vertices, which is invalid for a polygon.
Leaving one or more input fields empty.

To avoid these issues, always double-check that all required fields are filled with valid numbers and ensure that a > b (outer edge is longer than the inner edge).

Alerts and Error Messages Explained

"Please enter edge lengths and number of vertices." — This appears if one or more of the input fields are empty or invalid.
"Please enter at least 3 vertices." — Displayed when the number of vertices entered is less than 3.

These messages help guide users to correct their input so the calculator can generate valid results.

Tips and Tricks

Best Practices for Using the Calculator Efficiently

Always begin with the outer edge length (a) larger than the inner (b). If not, the calculator will swap them automatically, but it’s better to input them correctly.
Use whole numbers or decimal values depending on your project’s needs. Select the appropriate decimal precision from the dropdown for cleaner or more detailed results.
Click the “Delete” button to reset the calculator before starting a new calculation to avoid confusion with previous values.

FAQs

Answers to Frequently Asked Questions

Q: What is a polygon ring?
A polygon ring is the area between two concentric regular polygons that share the same number of sides, forming a "ring" shape.
Q: What if I enter the inner edge longer than the outer edge?
The calculator will automatically switch the values to maintain the proper outer-inner relationship, so calculations remain accurate.
Q: Why does the number of vertices have to be at least 3?
Because a shape with fewer than 3 sides is not a polygon. At least 3 sides are needed to form a valid geometric figure.
Q: Can I use this calculator for irregular polygons?
No. This tool is specifically designed for regular polygons, where all sides and angles are equal.
Q: Is it possible to get results in square meters or other units?
The calculator is unit-agnostic. If you input values in meters, your results will be in meters and square meters. Just stay consistent with your units.

References

Brumbaugh, D. K. (2000). Teaching Secondary Mathematics. Lawrence Erlbaum Associates.
Smith, R. T., & Minton, R. B. (2011). Calculus: Early Transcendental Functions. McGraw-Hill Education.
Burger, E. B., & Starbird, M. (2005). The Heart of Mathematics: An Invitation to Effective Thinking. Key College Publishing.
Jacobs, H. R. (2003). Geometry: Seeing, Doing, Understanding. W.H. Freeman and Company.
Gelfand, I. M., & Saul, M. (2001). Trigonometry. Birkhäuser.
